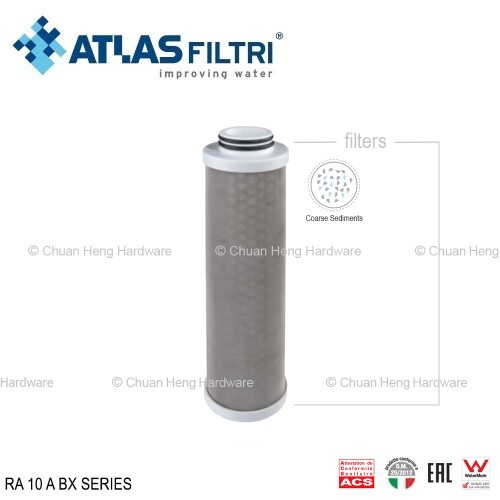

Atlas Filtri RA 10 A BX Series Filter Cartridge
Model Code: RA 10 A BX
- $117.82

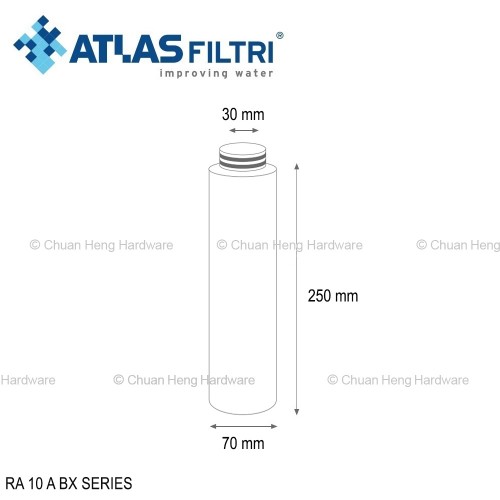

Height: 10" (250mm)
Filtration: 70 micron
THE RA BX (SOE-O-RING 222) WASHABLE FILTER CARTRIDGES ARE EQUIPPED WITH STAINLESS STEEL NET AND FRAME WITH QUICK COUPLING WITH DOUBLE O-RING TO GUARANTEE GREATER SEAL.
With 70 micron nominal filtering, these models are suitable for coarse filtration of water filled with impurities and sediments. They are capable of offering high capacity and a low pressure drop.
The RA BX lends itself to different uses and is available in these variants:
- RA-A cartridges made in AISI 316 stainless steel
- RA-C cartridges made in AISI 304 stainless steel
They are easily reusable and washable. Maximum capacity 4000 l/h.
Qty
Technical Features
- Stainless steel filter cartridges for the removal coarse sediments
- BX cartridges: quick coupling with double 45 mm o-ring
- Can be installed on PLUS 3P BX housings, DP housings, K Plus, DEPURAL TOP, BRAVO DP, OASIS DP housings
- Filter medium and inner armouring: stainless steel net AISI 316 /AISI 304
- Inner core and end caps: polypropylene
- Maximum operating temperature: 80°C (176°F)
- Average duration: 3-5 years
- Maintenance: wash every 3 months
- Use with potable water. Do not use with microbiologically impure water or of unknown quality
Benefits
- Atoxic materials, suitable for potable water
- Different models and configurations
- Structure is highly resistant thanks to the net with internal steel frame
- Durable and reliable, even at high temperatures
- High capacity and low pressure drop
- Suitable for well water filtration
- Perfect seal with 45 mm double o-ring
